EXERCISE 7.3
1. Δ ABC and Δ DBC are two isosceles Δ on the same base BC and vertices A and D are on the same side of BC (see Fig. 7.41). If AD is extended to intersect BC at P, show that:
(i) Δ ABD ≅ Δ ACD
(i) To prove: Δ ABD ≅ Δ ACD
Proof:
In Δ ABD and Δ ACD,
AB = AC (Given, Δ ABC is isosceles)
BD = CD (Given, Δ DBC is isosceles)
AD = AD (Common side)
By SSS rule,
Δ ABD ≅ Δ ACD
Therefore,
∠BAD = ∠CAD — (1) [CPCT]
∠BDA = ∠CDA — (2) [CPCT]
(ii) Δ ABP ≅ Δ ACP
To prove: Δ ABP ≅ Δ ACP
Proof:
In Δ ABP and Δ ACP,
AB = AC (Given)
∠BAP = ∠CAP [From (1)]
AP = AP (Common side)
By SAS rule,
Δ ABP ≅ Δ ACP
Therefore,
BP = CP — (3) [CPCT]
∠APB = ∠APC — (4) [CPCT]
(iii) AP bisects ∠A as well as ∠D.
To prove: AP bisects ∠A as well as ∠D
Proof:
From eq (1), ∠BAP = ∠CAP.
Thus, AP bisects ∠A.
Now,
∠BDA + ∠BDP = 180° (Linear pair)
∠BDP = 180° – ∠BDA
Also,
∠CDA + ∠CDP = 180° (Linear pair)
∠CDP = 180° – ∠CDA
Since ∠BDA = ∠CDA [From (2)],
∠BDP = ∠CDP
Thus, AP bisects ∠D.
(iv) AP is the perpendicular bisector of BC.
To prove: AP is the perpendicular bisector of BC
Proof:
From eq (3),
BP = CP
From eq (4),
∠APB = ∠APC
Since BPC is a straight line,
∠APB + ∠APC = 180° (Linear pair)
∠APB + ∠APB = 180°
2∠APB = 180°
∠APB = 90°
Therefore ∠APB = ∠APC = 90°
Hence, AP is the perpendicular bisector of BC.
2. AD is an altitude of an isosceles Δ ABC in which AB = AC. Show that:
(i) AD bisects BC
To prove: AD bisects BC (i.e., BD = CD)
Proof:
In right Δs Δ ADB and Δ ADC,
∠ADB = ∠ADC = 90° (AD is altitude)
AB = AC (Hypotenuse, Given)
AD = AD (Side, Common)
By RHS rule,
Δ ADB ≅ Δ ADC
Therefore BD = CD [CPCT]
Hence, AD bisects BC.
(ii) AD bisects ∠A.
To prove: AD bisects ∠A
Proof:
Since Δ ADB ≅ Δ ADC,
∠BAD = ∠CAD [CPCT]
Hence, AD bisects ∠A.
SEBA Class 9 Maths Exercise 7.3 Solutions

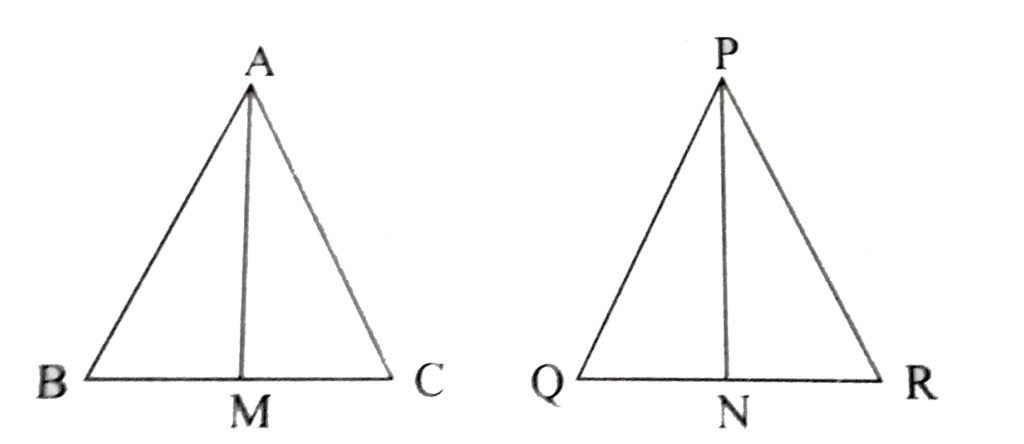

3. Two sides AB and BC and median AM of one Δ ABC are respectively equal to sides PQ and QR and median PN of Δ PQR (see Fig. 7.42). Show that:
(i) Δ ABM ≅ Δ PQN
To prove: Δ ABM ≅ Δ PQN
Proof:
Since AM is the median to BC,
BM = (1/2) BC
Since PN is the median to QR,
QN = (1/2) QR
Given that BC = QR,
(1/2) BC = (1/2) QR
BM = QN — (1)
In Δ ABM and Δ PQN,
AB = PQ (Given)
BM = QN [From (1)]
AM = PN (Given)
By SSS rule,
Δ ABM ≅ Δ PQN
Therefore ∠B = ∠Q — (2) [CPCT]
(ii) Δ ABC ≅ Δ PQR
To prove: Δ ABC ≅ Δ PQR
Proof:
In Δ ABC and Δ PQR,
AB = PQ (Given)
∠B = ∠Q [From (2)]
BC = QR (Given)
By SAS rule,
Δ ABC ≅ Δ PQR
Class 9 Maths Chapter 7 Exercise 7.3 Question Answer SEBA 2026-27
4. BE and CF are two equal altitudes of a Δ ABC. Using RHS rule, prove that the Δ ABC is isosceles.
To prove: Δ ABC is an isosceles Δ (i.e., AB = AC).
Proof:
In right Δs Δ BEC and Δ CFB,
∠BEC = ∠CFB = 90° (Altitudes)
BC = CB (Hypotenuse, Common)
BE = CF (Side, Given)
By RHS rule,
Δ BEC ≅ Δ CFB
Therefore ∠BCE = ∠CBF [CPCT]
∠BCA = ∠CBA
In Δ ABC, since sides opp. to equal ∠s are equal,
AB = AC
Hence, Δ ABC is an isosceles Δ.
5. ABC is an isosceles Δ with AB = AC. Draw AP ⊥ BC to show that ∠B = ∠C.
Given: Δ ABC where AB = AC and AP ⊥ BC.
To prove: ∠B = ∠C
Proof:
In right Δs Δ APB and Δ APC,
∠APB = ∠APC = 90° (AP ⊥ BC)
AB = AC (Hypotenuse, Given)
AP = AP (Side, Common)
By RHS rule,
Δ APB ≅ Δ APC
Therefore ∠B = ∠C [CPCT]
SSS and RHS Congruence Class 9 SEBA Ex 7.3 Solutions
6. If Δ ABC ≅ Δ PQR and Δ ABC is not ≅ to Δ RPQ, then which of the following is not true.
(A) BC = PQ
(B) AC = PR
(C) QR = BC
(D) AB = PQ
Given: Δ ABC ≅ Δ PQR
Corresponding parts are equal:
AB = PQ
BC = QR
AC = PR
Now evaluating the options:
(A) BC = PQ -> Incorrect relationship (Not true)
(B) AC = PR -> True
(C) QR = BC -> True
(D) AB = PQ -> True
Answer: (A) BC = PQ
7. If two sides AC and BC and median AM of Δ ABC are respectively equal to sides PR and QR and median PN of Δ PQR (Fig. 7.43), then which of the following statements is true or false.
(i) Δ ACM ≅ Δ PRN
(ii) Δ ABC ≅ Δ PQR
Options:
(A) (i) is true, (ii) is false
(B) (i) is false, (ii) is true
(C) Both (i) and (ii) are true
(D) Both (i) and (ii) are false
Given: AC = PR, BC = QR, and median AM = PN.
Since AM and PN are medians,
MC = (1/2) BC and RN = (1/2) QR
Since BC = QR,
MC = RN
In Δ ACM and Δ PRN,
AC = PR (Given)
MC = RN (Proved)
AM = PN (Given)
By SSS rule,
Δ ACM ≅ Δ PRN — (Statement i is true)
Therefore ∠C = ∠R [CPCT]
In Δ ABC and Δ PQR,
AC = PR (Given)
∠C = ∠R (Proved)
BC = QR (Given)
By SAS rule,
Δ ABC ≅ Δ PQR — (Statement ii is true)
Answer: (C) Both (i) and (ii) are true
SEBA Class 9 Maths Chapter 7 Exercise 7.3 Textbook Answers

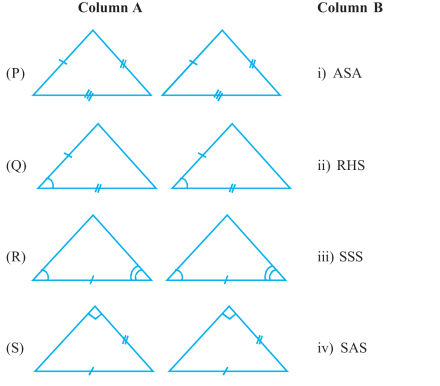

8. Match the columns for each pair of Δs from (P) to (S) according to their ≅ criterion (See fig 7.44).
Column A | Column B
(P) Pair with 3 equal marked sides | i) ASA
(Q) Pair with 2 sides and included ∠ marked | ii) RHS
(R) Pair with 2 ∠s and included side marked | iii) SSS
(S) Pair of right Δs with hypotenuse and one side marked | iv) SAS
Options:
A) P -> (i), Q -> (ii), R -> (iii), S -> (iv)
B) P -> (iv), Q -> (i), R -> (ii), S -> (iii)
C) P -> (iii), Q -> (iv), R -> (i), S -> (ii)
D) P -> (ii), Q -> (iv), R -> (i), S -> (iii)
Matching pairs according to figures:
(P) Three side pairs marked equal -> iii) SSS
(Q) Two sides and included ∠ marked equal -> iv) SAS
(R) Two ∠s and included side marked equal -> i) ASA
(S) Right ∠, hypotenuse, and one side marked equal -> ii) RHS
Correct sequence:
P -> (iii), Q -> (iv), R -> (i), S -> (ii)
Answer: (C) P -> (iii), Q -> (iv), R -> (i), S -> (ii)
9. A foldable step ladder of Aluminium is shown in the figure (Fig. 7.45). The length of two legs, AB and AC are both equal to 90 cm and the ∠ between the two legs as shown in the figure is 50°.
On the basis of the above information answer the following questions.
(i) ∠ACB is equal to
(A) 60°
(B) 65°
(C) 70°
(D) 75°
Given: AB = AC = 90 cm, ∠BAC = 50°.
To find ∠ACB:
In Δ ABC,
AB = AC
Therefore ∠ABC = ∠ACB (∠s opp. to equal sides are equal)
Sum of ∠s in Δ ABC = 180°:
∠BAC + ∠ABC + ∠ACB = 180°
50° + ∠ACB + ∠ACB = 180°
2∠ACB = 180° – 50°
2∠ACB = 130°
∠ACB = 65°
Answer: (B) 65°
(ii) If ∠CAB = 60° then BC =
(A) 75 cm
(B) 80 cm
(C) 85 cm
(D) 90 cm
If ∠CAB = 60° then BC =
If ∠CAB = 60° and AB = AC = 90 cm, then:
∠ABC = ∠ACB = (180° – 60°)/2 = 60°
Since all ∠s are 60°, Δ ABC is an equilateral Δ.
Therefore BC = AB = AC = 90 cm
Answer: (D) 90 cm
(iii) Δ ACB is
(A) Equilateral Δ
(B) Isosceles Δ
(C) Scalene Δ
(D) Right Δ
Type of Δ ACB:
Since AB = AC = 90 cm, the Δ has two equal sides.
Answer: (B) Isosceles Δ
(iv) In two Δs ABC and DEF, if ∠A = ∠D, AB = DE and AC = DF, then the criterion by which the Δs are ≅ is
(A) SSS
(B) SAS
(C) ASA
(D) RHS
Criterion for ≅:
Given ∠A = ∠D, AB = DE, and AC = DF.
Two sides and their included ∠ are equal.
Answer: (B) SAS
